Smoke Vent Hatch for Stairwell Skymax CE, by KADRA Tech
Skymax CE is more than just a smoke vent hatch — it is a complete solution that combines smoke extraction, automatic daily ventilation, easy roof access, and natural lighting for the stairwell.
Skymax CE – Smoke Extraction
This electric smoke hatch for stairwell meets all European standards and EU conditions for stairwell smoke extraction. Skymax CE is operated by a Skycom Skymax CE control unit with an integrated temperature detector. Skycom can operate independently or be connected to the BMS, the building’s fire alarm system, or the automatic daily ventilation system. In any case, fire safety is guaranteed by the temperature sensor in the Skycom CE Skymax control unit, which automatically opens the hatch at a temperature of 70° C.
Of course, the Skymax CE hatch can also be opened manually by pressing a ventilation button or the emergency opening button in case of fire.
Skymax CE – Daily Ventilation
Besides providing natural lighting for the stairwell, you can use Skymax CE for natural building ventilation, either by opening/closing from a button or by integrating the hatch into:
- the existing BMS (Building Management System);
- the building’s climate and ventilation system;
- connection to a local weather station (temperature, rain, wind, CO2 sensors, etc.);
Skymax CE – Roof Access Hatch
The innovation, compared to other smoke hatches, is the way the electric operation is designed and executed. Unlike other smoke hatches, Skymax CE offers the maximum possible free space, even for small-sized hatches, for easy access to the roof/terrace.

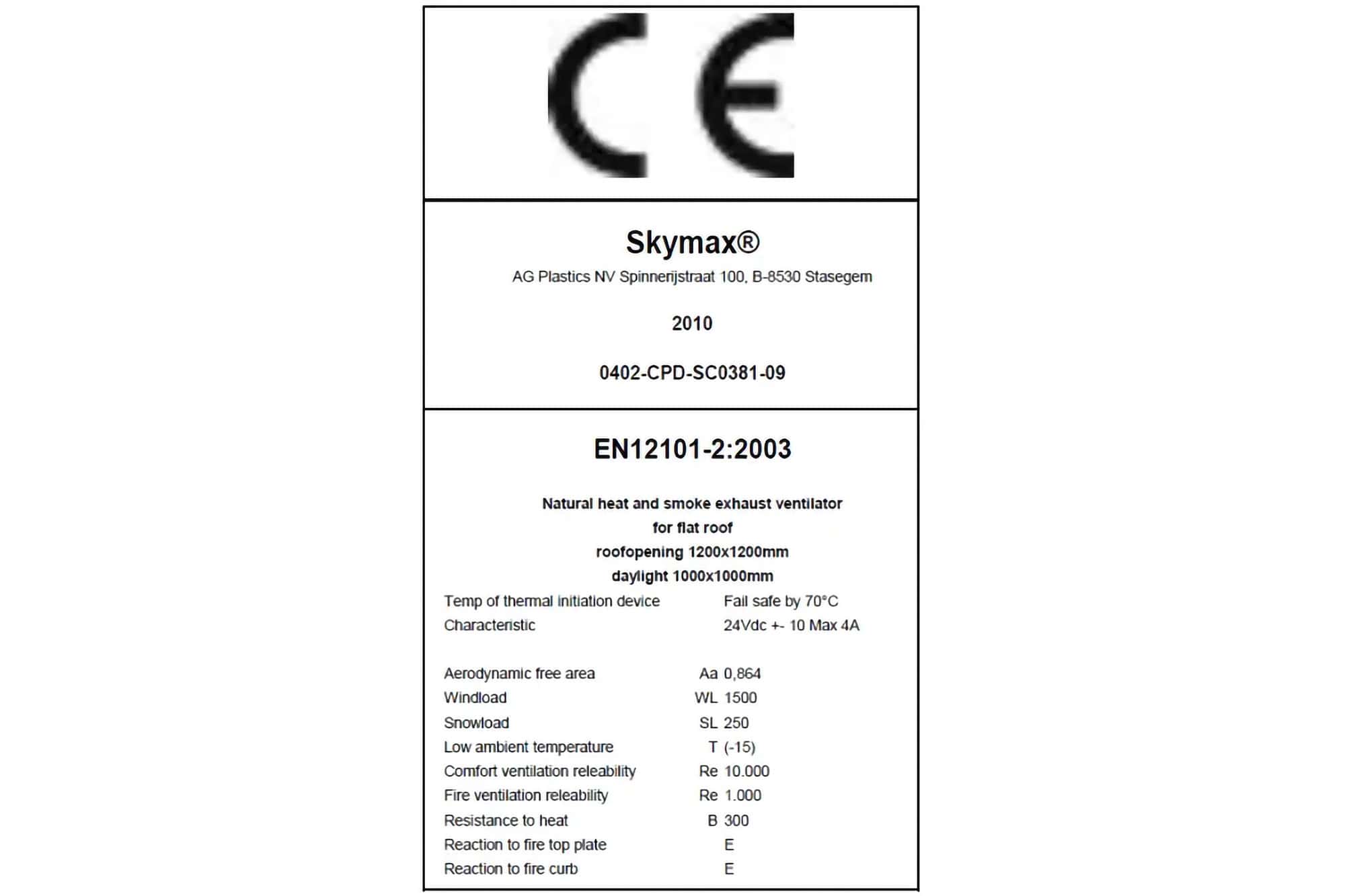

Skymax– CE Marking
Skymax CE comes with all mandatory European certifications (DoP – Declaration of Performance and CE marking), in accordance with EN 12101-2 (smoke and heat exhaust systems in case of fire).
Of course, the power supply and control part complies with European standards prEN 12101-9 (control panels for smoke extraction systems), EN 12101-10 (power supplies for smoke extraction systems).
Skymax CE – Renovation
The philosophy behind this hatch is simple: maximum performance in minimum available space. Therefore, Skymax CE, besides incorporating different functions (smoke extraction, ventilation, access), does so in the most efficient way possible. You can replace a classic smoke hatch, 1m x 1m (for example), pneumatic (which ensures smoke extraction exclusively), with a Skymax CE hatch and have, in a single product:
- efficient smoke extraction – maximum free aerodynamic area (0.9 sqm, for example), which can even be increased with the help of metal spoilers;
- automatic daily ventilation;
- free roof access;
- superior thermal insulation (Ut coefficient even 0.51 W/m2K);
- very good sound insulation (noise attenuation 40dB);
- dome made of glass or plastic (acrylic glass PMMA, polycarbonate);
- varied range of bases (sockets);
Stairwell Smoke Extraction Legislation
The current fire protection regulations (Fire Safety Regulations for Buildings, indicative P 118-99, from 07.04.1999) clearly stipulate the obligation of smoke extraction in general and the stairwell smoke extraction norms applicable in Romania. Thus, according to P118/1999:
“Smoke extraction, through organized natural draft, of closed stairwells, is achieved by automatic and manual opening of the smoke evacuation device (located in the upper third of the last level of the stairwell) and the air intake opening (provided at the bottom of the stairwell) […]
Rooms […], as well as evacuation stairwells and buffer rooms without natural light, are equipped with smoke evacuation devices, representing a minimum […] and 5% of the built area of the stairwell (but at least 1 sqm for each stair), or with mechanical smoke evacuation systems. […]
At the top, the stairwell must have a smoke evacuation device (hatch) with a free area determined according to the regulations, but at least 1 sqm, with opening possibilities ensured by command from the access level to the stair.”
If you need a smoke evacuation hatch for the stairwell, an automatic natural ventilation hatch, or a roof access hatch, you can have all these in a single product: Skymax CE. KADRA Tech offers you the complete solution: free consultancy in choosing the optimal solution, a versatile, reliable, efficient, and elegant product, professional installation, warranty, and post-warranty service with qualified and experienced technicians.
