Thermal Insulation Doors ThermCord
We all remember that August day when the office sweats and the air conditioning can no longer cope, and the cold week in January when the two receptionists freeze by the entrance along with that group of clients waiting to receive information.
Largely, when it comes to thermal extremes, we predominantly think about our physical comfort and that of our clients. However, when considering the concept of thermal insulation, there are several perspectives to take into account.
When an aspect such as thermal insulation needs to be considered, most buildings focus on elements like walls, windows, floors, and ceilings. However, a significant part of the temperature exchange occurs through the door. Whether left open by employees or suffering from poor thermal insulation, the door is the main element responsible for unwanted thermal transfer.
With unwanted thermal transfer and poor thermal insulation, gas and electricity consumption to maintain a pleasant ambient temperature will increase directly proportional to the budget allocated for utility costs. This happens due to the lack of an integrated thermal insulation system.
The solution to this problem is the RECORD automatic door with ThermCord thermal insulation.
Technical Details – Thermal Insulation Doors ThermCord

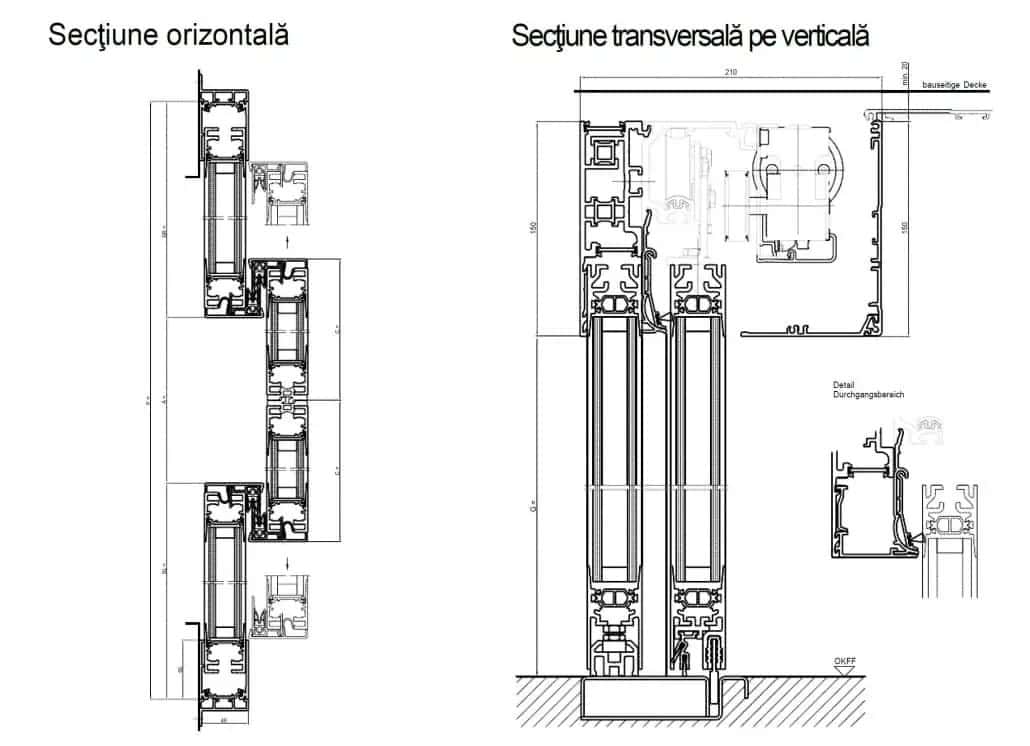

With a simple thickness difference of 6 mm compared to conventional automatic sliding doors, ThermCord integrates perfectly into any architectural project. The minimalist design and the combination of aluminum and glass offer any entrance a unique element.

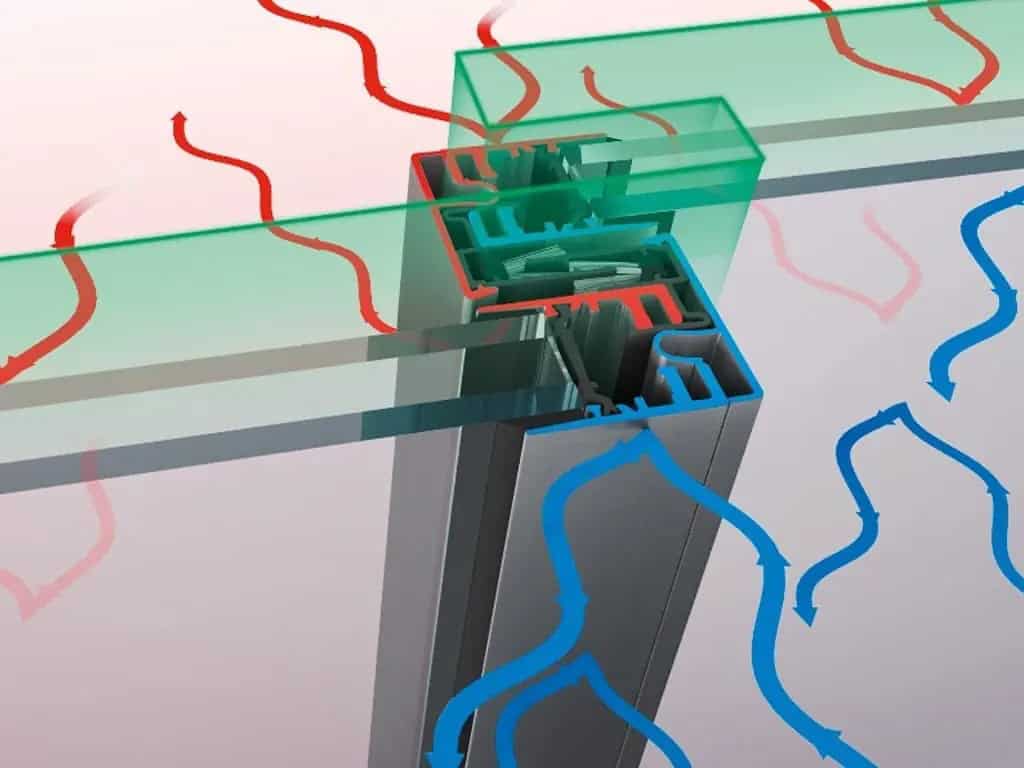

To ensure we provide high-standard thermal insulation, ThermCord doors are manufactured using insulating glass, aluminum, and an inert gas located between the two glass strips encapsulated within the door frame.

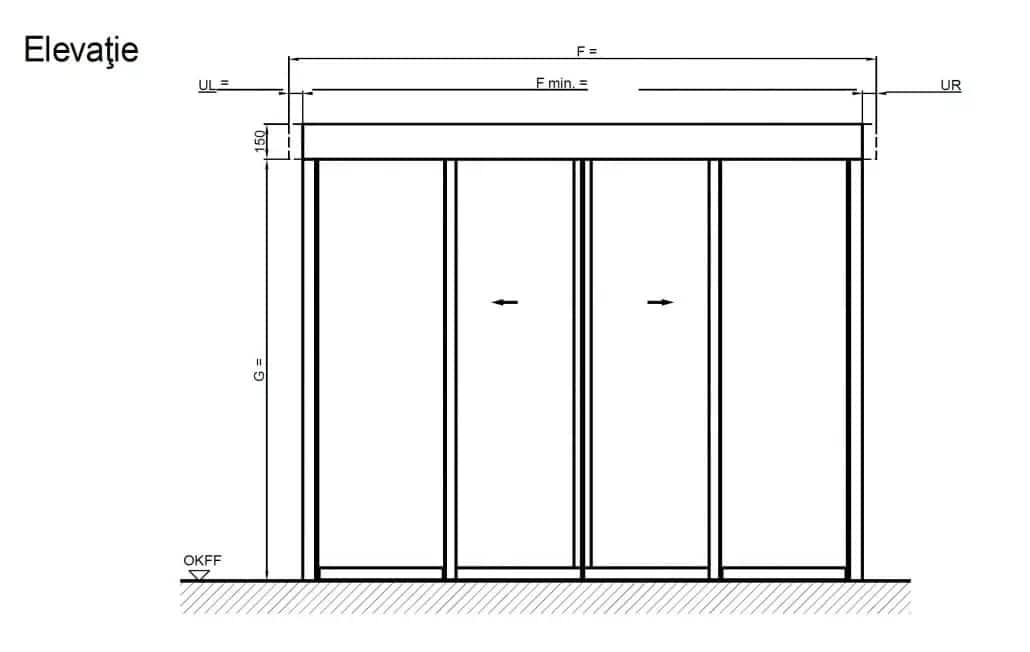

The RECORD automatic sliding door with ThermCord technology has a recommended maximum height of up to 3 meters and an opening ranging from 0.8 meters for single doors to 3 meters for double doors. The operator offered by RECORD, with sizes up to 200 mm, can support a door weight of up to 250 kg per operator. Due to these technical qualities, the door can be customized for any project, ensuring that the door quality meets the architect’s expectations.
General Information – Thermal Insulation Doors ThermCord
Additionally, to ensure that ThermCord provides exceptional thermal insulation, the automatic sliding door has been tested for temperature variations ranging between -15 degrees and +50 degrees Celsius.
When the door is closed, the degree of impermeability of the door against the airflow between environments can only be surpassed by that of sliding doors used in hospitals for operating rooms. This has been proven by tests conducted by the Rosenheim institute in Germany for RECORD.
A perfect solution for any office building, shopping center, or industrial facility, the ThermCord thermal insulation door offered by the RECORD brand will ensure that the room temperature is always under control, and gas and electricity bills remain low.
Complete information about automatic sliding doors can be accessed on the dedicated page – Sliding Doors.
Complete information about RECORD | BLASI can be accessed on the official page Record Romania
